Anti-skid Stair Steps in Work Platform, Stairs to Ensure Safety

Anti-skid stair treads are made of aluminum plate, galvanized pate, stainless steel plate, carbon steel plate. Adopting numerical technology, we punch the metal plate into different hole patterns and make shear bending. Then we weld these plates, forming a anti-skid plate.

With high quality materials, safety grating stair treads are applied as anti-skid stair steps for bridge walkway, production workshop, operating platform, in industrial plants, sewage treatment plant, brewery, paper industry and pharmaceutical industry. With beautiful appearance, anti-skid stair treads are ideal for stairs and platform.

Application of anti-skid stair steps:

  • As anti-skid treads of stairs, bridge walkway, train ladder, etc.
  • For production workshop, dock to ensure operation safety.
  • Drain ice, snow, mud stains in traffic facilities.

We offer four types of anti-skid stair steps as the following:

  • Diamond Safety Grating Stair Treads.
  • Perforated anti-skid stair treads with round holes.
  • Perforated large round hole stair treads.
  • Interlock safety grating stair treads.

Diamond Safety Grating Stair Treads

Diamond anti-skid safety plate is widely applied to the indoor and outdoor stairs treads of industrial factory, walkway, workshop, traffic facilities, etc. And when the mud stains, ice, snow attached to the floor, the anti-skid stair treads can ensure the safety of staff effectively.

There is a anti-skid stair step with diamond hole pattern safety grating.
ASS-1: Diamond safety grating stair treads have high skid resistance.
Three rows of diamond safety grating treads lay a walkway.
ASS-2: Safety grating plank with diamond holes has high pressure resistance and used as walkway.

Features of diamond safety grating stair treads:

  • High pressure resistance and skid resistance.
  • Drain ice, snow, mud stains, grease to ensure workers safety.
  • Good load capacity.
  • Beautiful appearance.
  • Long service life.
Specification for Diamond Safety Grating Stair Treads
Material Span inches Gauge Depth Standard stair treads Stair treads with nosing
Steel Up to 30 14 or 12 gauge 1-1/2" 2 Diamonds (4-3/4")
3 Diamonds (7")
4 Diamonds (9-1/2")
5 Diamonds (11-3/4")
3 Diamonds (8-1/8")
4 Diamonds (10-1/2")
30–36 1-1/2"
36–42 1-1/2"
42–48 2"
Aluminum Up to 42 0.080" 2"
Up to 48 0.100"
Stainless steel Up to 30 316L 16 gauge 2"
Up to 36 304L 16 gauge

Perforated anti-skid stair treads with round holes

There are several anti-skid stair-treads with dented holes and galvanized surface.
ASS-3: Anti-skid-stair-treads with dented holes are self cleaning.

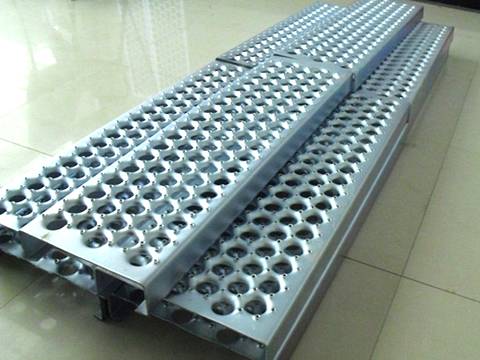

Perforated anti-skid planks are built stair treads.
ASS-4: perforated anti-skid stair treads with dented holes decorate stairs and ensure safety.

Features for round hole anti-skid-stair-treads:

  • Can self cleaning.
  • Easy to maintain.
  • Aging resistance and beautiful.
  • Good sound-absorbing effect.
Specification of round hole anti-skid stair treads
Material Thickness (mm) Length Width Height
Mild steel 2.0, 2.5, 3.0 6000 mm 120 mm
150 mm
180 mm
210 mm
240 mm
270 mm
40 mm
50 mm
75 mm
Hot-galvanized or pre-galvanized 2.0, 2.5, 3.0
Stainless steel 2.0, 2.5
Aluminum ENAW 5754 2.0, 2.5, 3.0

Perforated large round hole stair treads

A perforated-o safety grating plank lies on two perforated-o planks with galvanized surface.
ASS-5: Perforated anti-skid plate is portable and light weight.

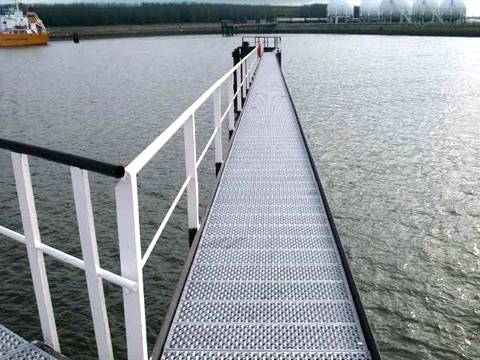

Perforated-o safety grating planks are built into a riverside sidewalk with rails.
ASS-6: Perforated anti-skid plates are used in riverside and dock.

Features of perforated large round hole stair treads:

  • Large holes keep the surface enough dry.
  • Galvanized surface is anti-rust.
  • Light and simple structure are convenient.
Specification of perforated large round hole stair treads
Diamond Pattern Width Channel Depth Pre-galvanized Weight lb/ft.
13 Holes 24" 5" 11 and 13 gauge. 11.8
16 Holes 30" 5" 11 and 13 gauge 13.6
16 Holes 36" 5" 11 and 13 gauge 15.9
Materials: pre-galvanized steel 11 and 13 gauge.

Interlock safety grating stair treads

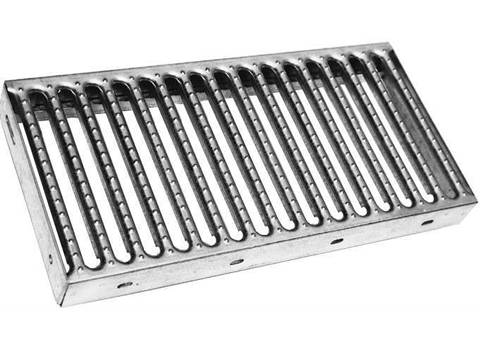

There is an interlock safety grating stair tread with nosing.
ASS-7: The anti-skid stair treads with interlock have firm structure to ensure safety.

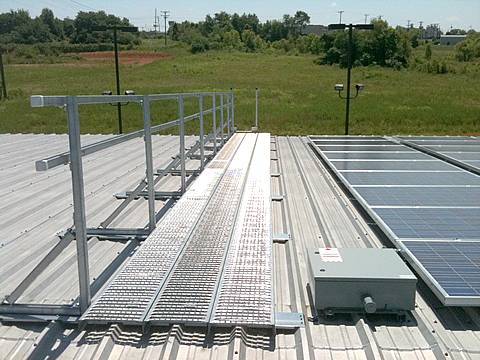

Interlock anti-skid planks are used as roof sidewalk for anti-slip.
ASS-8: As roofing walkway, interlock anti-skid planks have stable structure and good skid resistance to ensure safety.

Features for interlock safety grating stair treads:

  • Stable structure.
  • Non-corrosive.
  • With nosing.
  • Long service life.
Interlock safety grating stair treads sizes
Material carbon steel, hot dipped mill-galvanized steel
Surface treatment mill galvanized before fabrication
Gauge 14 gauge, 18 gauge or 16 gauge (special)
Span length 24", 30", 36", 48"
Standard Width 12", 9", 6", 7-1/2"
Width with nosing 7-1/2", 10 1/2", 13-1/2"
Height 2-1/2"
Surface MG-traction grip
